杰達拱形屋頂?shù)募夹g(shù)參數(shù)
一、拱形屋頂跨度板厚對照表
| 跨度 | m | 6~10 | 8~13 | 10~18 | 15~20 | 18~21 | 22~24 | 24~27 | 28~32 |
| 板厚 | mm | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 1.2 | 1.3 |
二、矢跨比對照表
| 跨度(m) | 矢跨比 | 拱高(m) | 板厚(mm) | 水平力t/m | 垂直力t/m |
| 12 | 0.18 | 1.8 | 0.8 | 0.445 | 0.324 |
| 15 | 0.2 | 3.0 | 0.8 | 0.490 | 0.412 |
| 18 | 0.2 | 3.6 | 0.9 | 0.542 | 0.454 |
| 21 | 0.2 | 4.2 | 1.0 | 0.659 | 0.553 |
| 24 | 0.2 | 4.8 | 1.1 | 0.783 | 0.682 |
| 27 | 0.2 | 5.4 | 1.2 | 0.902 | 0.750 |
| 30 | 0.2 | 6.0 | 1.3 | 1.038 | 0.873 |
| 33 | 0.2 | 6.6 | 1.35 | 1.142 | 0.960 |

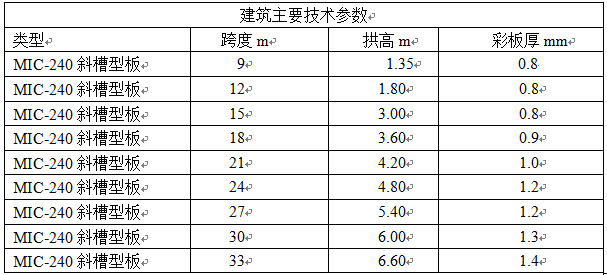

三、拱形屋頂建筑的主要技術(shù)參數(shù)

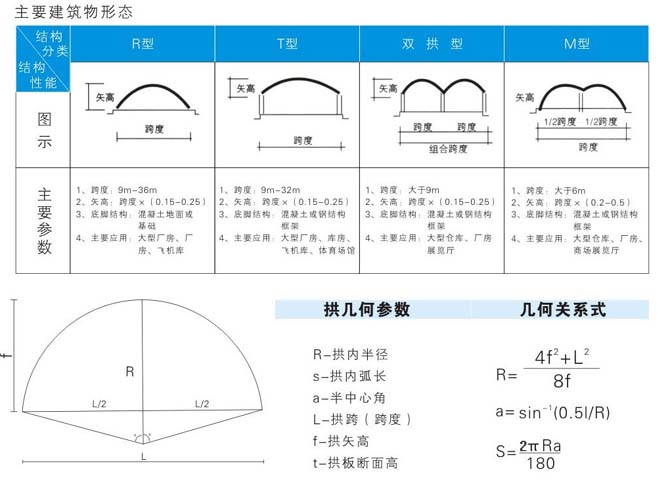

三、拱形屋頂?shù)闹饕ㄖ螒B(tài)

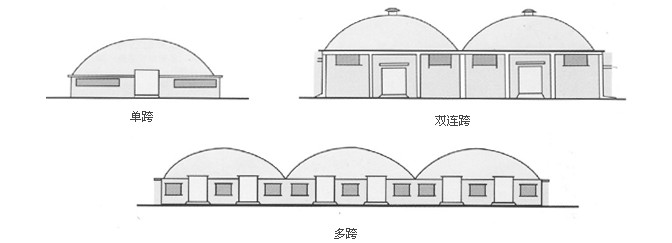

四、單跨、雙跨、多連跨拱形屋頂示意圖
